Description
oEnterprise
Data Formats
pingStation 3 now supports ASTERIX CAT 021 message formats, for global compatibility with air traffic management standards. Additional formats support integration with any display system or data logger.
Weather Resistant and Easy to Deploy

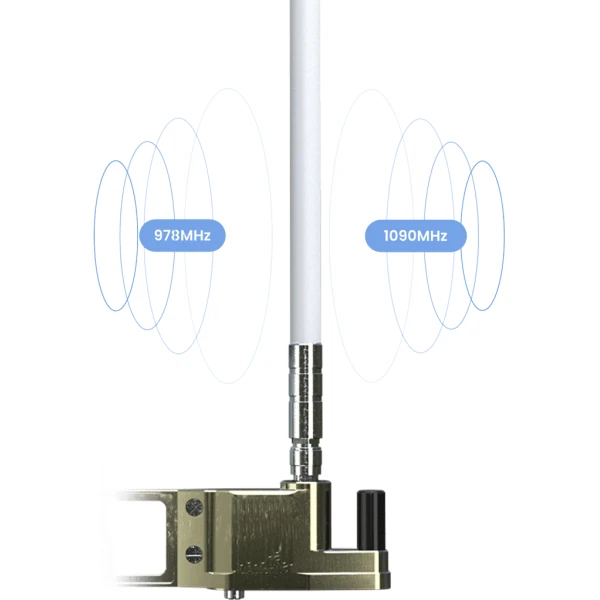

Say goodbye to difficult coax cable runs that reduce your reception performance. The all-in-one pingStation 3 includes the receiver, GPS, and antenna in an IP67 weatherproof enclosure, with power and data provided by a single Power-Over-Ethernet (POE) network cable connected right to your LAN. The quick pole-mount clamp design makes installation a snap.
| Specification | Value |
|---|---|
| Input Voltage / Power | 44-57V / 350mA Power over Ethernet |
| Size | 673.70 x 178.45 x 36 mm |
| Weight | 545 grams |
| Receive | |
| MTL 1090MHz Dynamic Range |
-88dBm
-79 to 0dBm |
| MTL 978MHz Dynamic Range |
-93dBm
-90 to -3dBm |
| Interface | Asterix CAT021
Ethernet (JSON UDP) Compressed VRS (Virtual Radar Server) |
